Mini Hangar Door

Mini Hangar Door

PVC fabric Narrow Series Hangar door, also called double-layer canvas doors, is preferred in windy areas. Double-layer PVC fabric doors can be applied in large sizes such as 8x8. Double-layer PVC fabric doors provide comfort to the customer with different color options and long-term maintenance-free use. PVC fabric narrow series hangar doors are one of the most logical door investments that have been used for many years without any problems.

What Are The Usage Areas Of PVC Fabric Narrow Series Hangar Doors?

Double-layer PVC fabric doors are used in industrial storage areas, shipyards, production factories or all large hangars. Double fabric doors are also very common in large barn facilities. Double layer PVC fabric barn doors are easy to use.

What Are The Features Of PVC Fabric Narrow Series Hangar Door?

Since the double-layer PVC fabric doors are double-layered, the wind resistance is high thanks to the intermediate carcasses inside. Another feature of double-layer PVC fabric doors is maintenance-free doors. You will not pay extra maintenance costs for PVC fabric hangar doors that you can use for many years.

What Are PVC Fabric Narrow Series Hangar Door Equipment?

The equipment of double-layer PVC fabric doors are a geared motor, increasing number of rope drums according to the size, 4 limit switches, a control unit, rope breakage safety system, main frame and canvas.

How Long Is The Production Time Of Double Layer PVC Fabric Doors?

Production of PVC fabric barn doors is 10 days. According to the intensity of the production area, the production period of double-layer PVC fabric doors can be extended up to 20 days.

How Much Is The Price Of Double Layer PVC Fabric Doors?

The price of PVC fabric Shipyard Doors is not certain as they are produced according to special sizes.

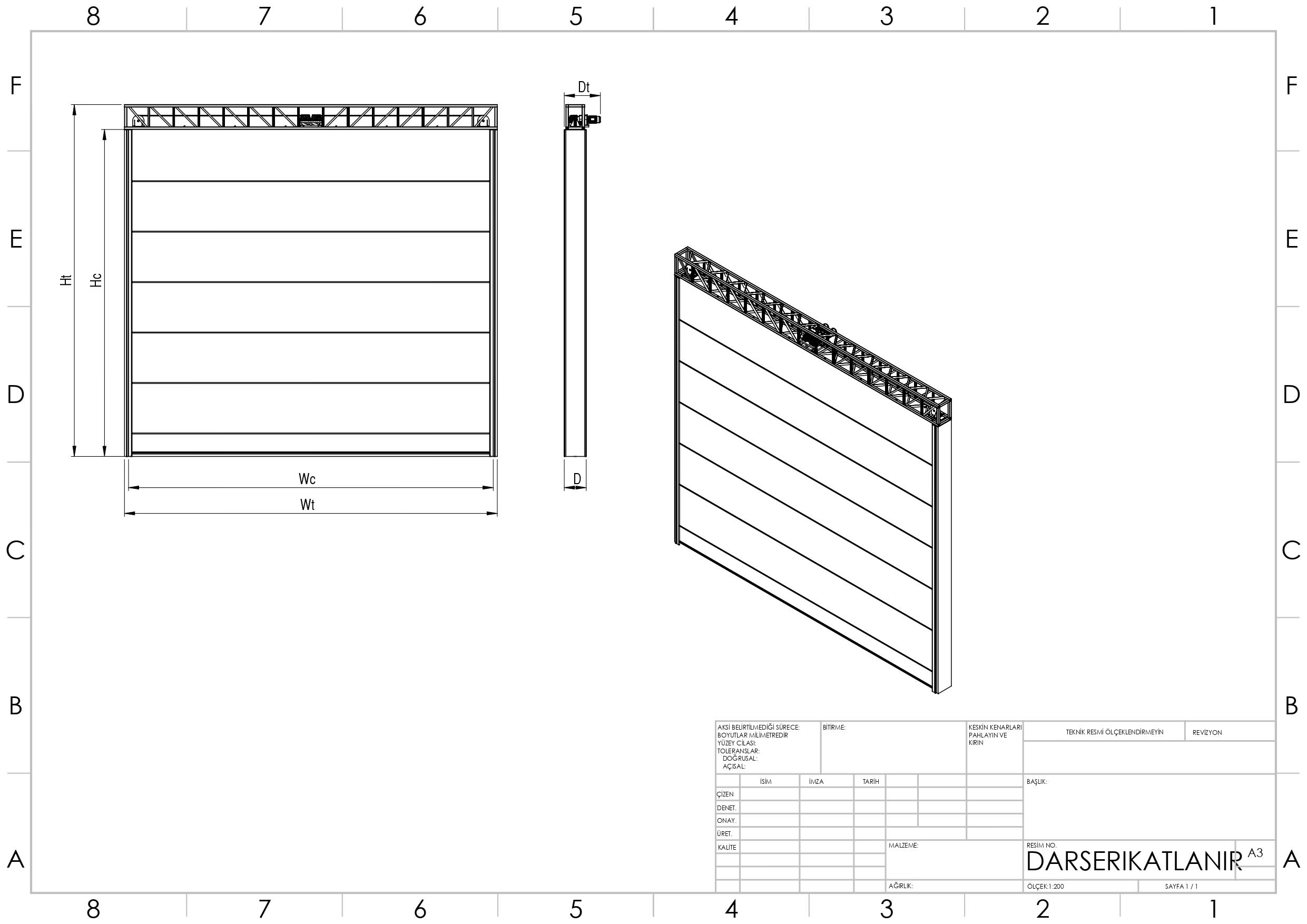

Technical Drawing

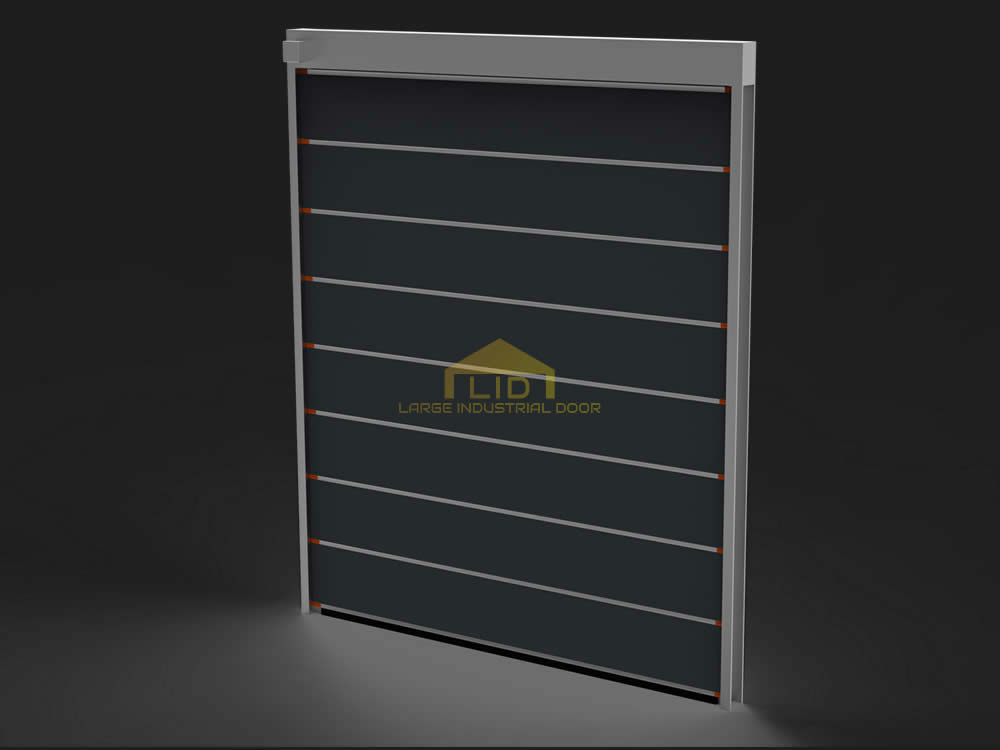

Door Render

Fabric

Brand: Mehler Texnologies

Weight: 900 g/m²

Tensile Strength: 4000 N/50 mm

Temperature Resistance: -40 °C / +70 °C

Fire Resistance: ISO 3795 < 100 mm/min

Fabric

Motor

2.2–5 kW 1500 RPM IE2, 230/400V 50Hz, IP55 3Phase

Reduction Gear: DS050 İ:40

Brake: ENR02 220V Cooled + Manual

Motor

Control Unit

EP500

LCD Screen

Control Unit

Switch System

Special Mechanical Switch

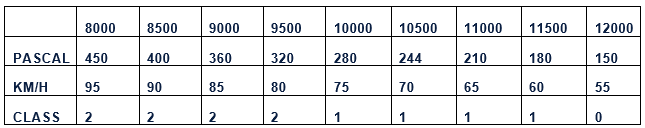

Wind Resistance

Wind Resistance

Insulation

The part at the bottom of the door is brought into contact with the ground to prevent airflow.

Speed

Standard 70 cm/s, optionally increased with speed driver

Metal Parts

Steel

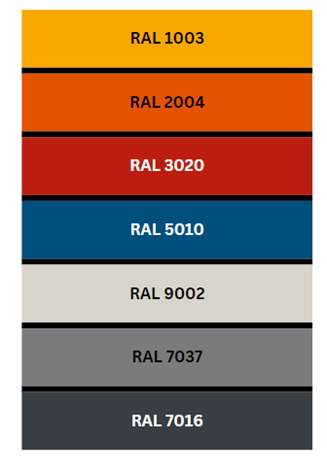

Color Options

Color Options

Optional Specs

  • Curtain Photocell
  • Remote Control
  • Loop Detector
  • Buzzer
  • Radar
