High Speed PVC Insulated Spiral Fabric Doors

High Speed PVC Insulated Spiral Fabric Doors

High speed PVC insulated spiral fabric doors are applied to garages. As the name suggests, these doors are fast and allow quick vehicle entries, while also reducing dust, air circulation, and energy loss. They control entry and exit via a fully automatic system. When equipped with a metal detection sensor, the doors can detect vehicles and open/close automatically after a set delay, offering a smart transition system for factories.

They include a photocell system to stop and reverse movement if an object is detected during automatic closing.

What are the usage areas?

Common areas of use include parking lots, cold storages, and exteriors. They offer both safety and operational efficiency.

What are the features?

The most important feature is their high-speed operation and endurance for continuous use. These doors are visually appealing with color options and support automatic modules for timed closure. They reverse direction if an object passes underneath. They are compatible with remote controls, LOOP detectors, card access, motion radar, and dry contact integrations.

What are the equipments?

Standard components include: canvas, motor, control card, side guides, and upper mechanism.

Production Time

Average production time for one door is around 10 days, which may vary based on project complexity and demand.

How much does it cost?

As these doors are custom-built, pricing varies based on dimensions, project requirements, and optional features. Fixed pricing is not applicable.

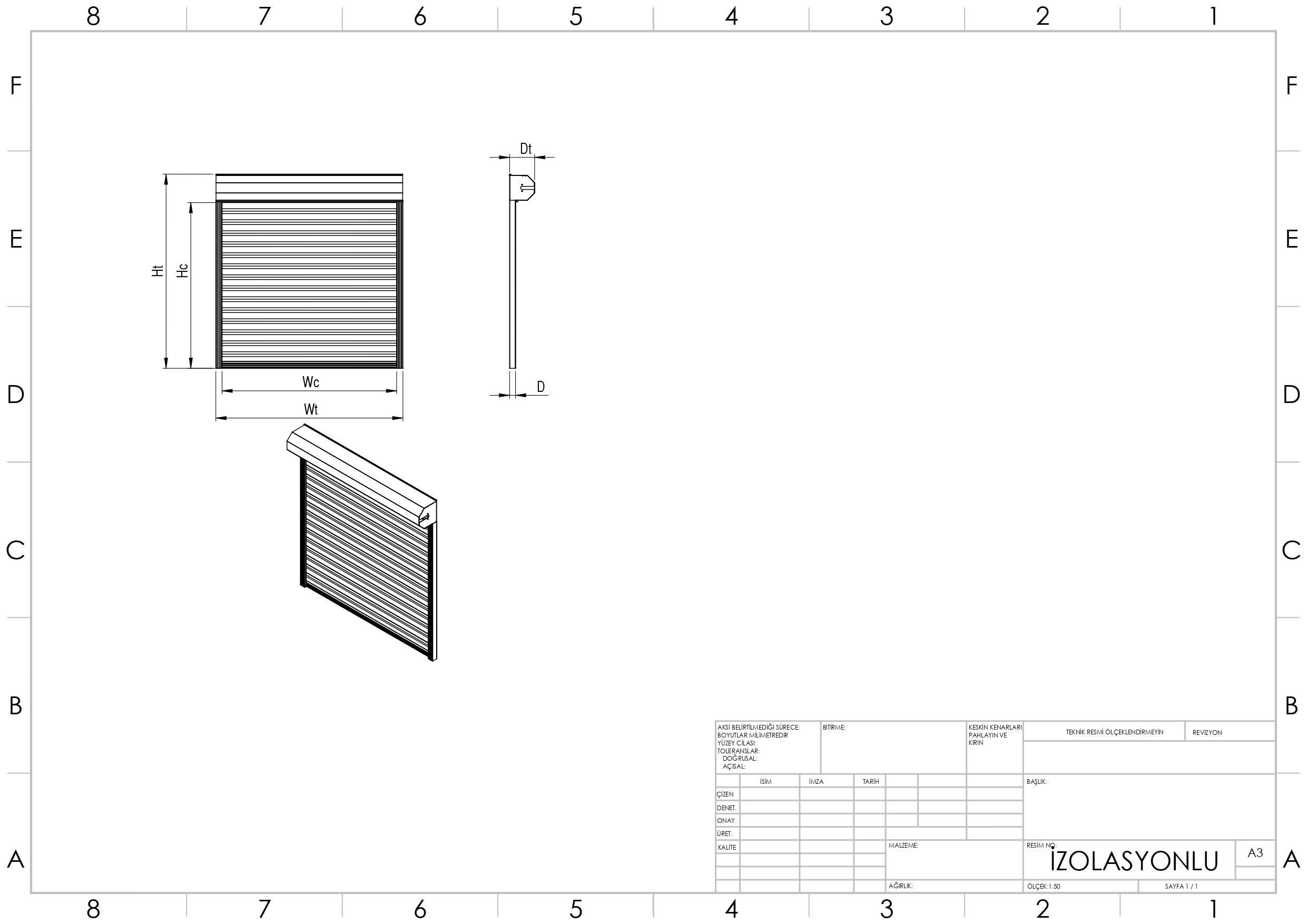

Technical Drawing

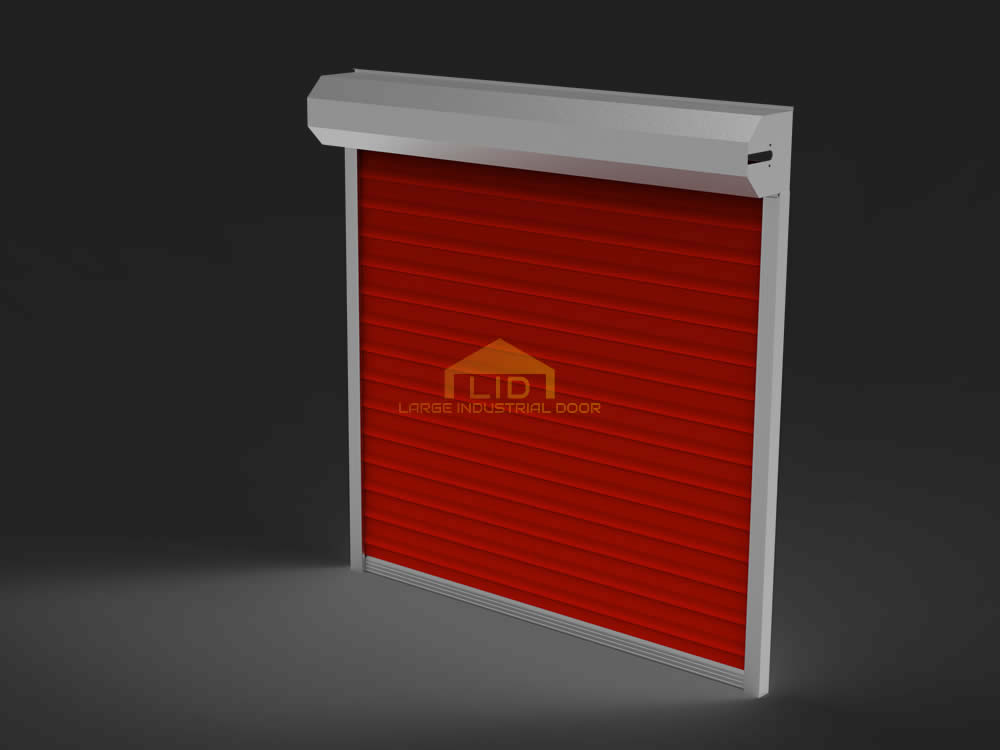

Render
FABRIC

Brand: Mehler Texnologies

Weight: 900 g/m²

Tensile Strength: 4000 N/50 mm

Temperature Resistance: -40 °C / +70 °C

Fire Resistance: ISO 3795 <100 mm/min

Fabric
Motor

Motor: 0.37-1.1 kW 1500 RPM IE2 230/400V 50Hz IP55 3Phase

Reduction Gear: DS050 İ:15

Brake: ENR02 220V COOLED + MANUAL

Motor
Control Unit

EP500

LCD Screen

Control Unit
Switch System

Special Mechanical Switch

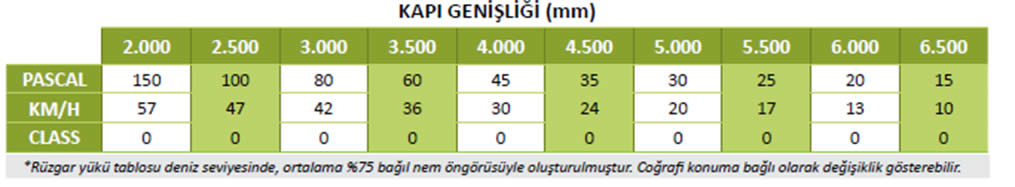

Wind Resistance

The doors are resistant to high wind pressure.

Wind Resistance
Insulation

The bottom part of the door seals against the ground to prevent air flow and preserve temperature stability.

Speed

Standard speed: 70 cm/s. Optional higher speed available with speed driver.

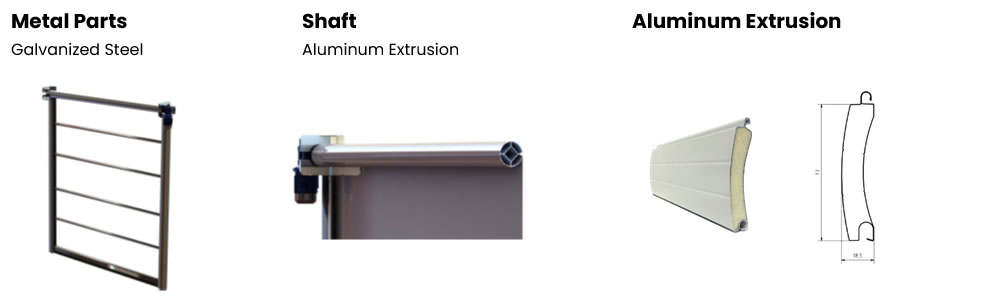

Metal Parts

Metal PartsGalvanized Steel

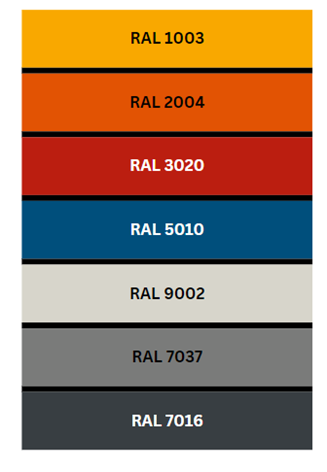

Color Options
Color Options
Optional Specs
  • Curtain Photocell
  • Remote control
  • Loop Detector
  • Buzzer
  • Radar
